• Mealy State Machine
• Moore State Machine
• VHDL code for Sequence detector (101) using moore state machine
• VHDL code for Sequence detector (101) using mealy state machine
• TestBench VHDL code for sequence detector using Moore State Machine
• TestBench output waveform for Mealy and Moore State Machine

Mealy State Machine

The Output of the state machine depends on both present state and current input. When the input changes,the output of the state machine updated without waiting for change in clock input.

Moore State Machine

The Output of the State machine depends only on present state. The output of state machine are only updated at the clock edge.

Let's construct the sequence detector for the sequence 101 using both mealy state machine and moore state machine.

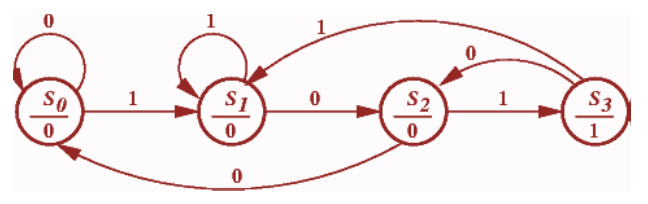

Moore state require to four states st0,st1,st2,st3 to detect the 101 sequence.

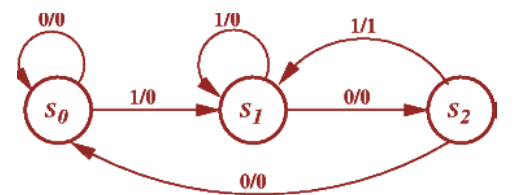

Mealy state machine require only three states st0,st1,st2 to detect the 101 sequence.

VHDL code for Sequence detector (101) using moore state machine

library IEEE; use IEEE.STD_LOGIC_1164.ALL;  entity moore is Port ( clk : in STD_LOGIC; din : in STD_LOGIC; rst : in STD_LOGIC; dout : out STD_LOGIC); end moore;  architecture Behavioral of moore is type state is (st0, st1, st2, st3); signal present_state, next_state : state; begin  synchronous_process: process (clk) begin if rising_edge(clk) then if (rst = '1') then present_state <= st0; else present_state <= next_state; end if; end if; end process;  output_decoder : process(present_state, din) begin next_state <= st0; case (present_state) is when st0 => if (din = '1') then next_state <= st1; else next_state <= st0; end if; when st1 => if (din = '1') then next_state <= st1; else next_state <= st2; end if; when st2 => if (din = '1') then next_state <= st3; else next_state <= st0; end if; when st3 => if (din = '1') then next_state <= st1; else next_state <= st2; end if; when others => next_state <= st0; end case; end process; next_state_decoder : process(present_state) begin case (present_state) is when st0 => dout <= '0'; when st1 => dout <= '0'; when st2 => dout <= '0'; when st3 => dout <= '1'; when others => dout <= '0'; end case; end process;  end Behavioral;

VHDL code for Sequence detector (101) using mealy state machine

library IEEE; use IEEE.STD_LOGIC_1164.ALL;  entity mealy is Port ( clk : in STD_LOGIC; din : in STD_LOGIC; rst : in STD_LOGIC; dout : out STD_LOGIC); end mealy;  architecture Behavioral of mealy is type state is (st0, st1, st2, st3); signal present_state, next_state : state; begin  syncronous_process : process (clk) begin if rising_edge(clk) then if (rst = '1') then present_state <= st0; else present_state <= next_state; end if; end if; end process;  next_state_and_output_decoder : process(present_state, din) begin dout <= '0'; case (present_state) is when st0 => if (din = '1') then next_state <= st1; dout <= '0'; else next_state <= st0; dout <= '0'; end if; when St1 => if (din = '1') then next_state <= st1; dout <= '0'; else next_state <= st2; dout <= '0'; end if; when St2 => if (din = '1') then next_state <= st1; dout <= '1'; else next_state <= st0; dout <= '0'; end if; when others => next_state <= st0; dout <= '0'; end case; end process;  end Behavioral;

TestBench VHDL code for sequence detector using Moore State Machine

            LIBRARY ieee; USE ieee.std_logic_1164.ALL;  ENTITY tb_moore IS END tb_moore;  ARCHITECTURE behavior OF tb_moore IS   – Component Declaration for the Unit Under Test (UUT)  COMPONENT moore PORT( clk : IN std_logic; din : IN std_logic; rst : IN std_logic; dout : OUT std_logic ); END COMPONENT;  --Inputs signal clk : std_logic := '0'; signal din : std_logic := '0'; signal rst : std_logic := '0';  --Outputs signal dout : std_logic;   – Clock period definitions constant clk_period : time := 20 ns;  BEGIN   – Instantiate the Unit Under Test (UUT) uut: moore PORT MAP ( clk => clk, din => din, rst => rst, dout => dout );   – Clock process definitions clk_process :process begin clk <= '0'; wait for clk_period/2; clk <= '1'; wait for clk_period/2; end process;   – Stimulus process stim_proc: process begin  rst <= '1';  wait for 100 ns;  rst <= '0';  din <= '0';  wait for 20 ns;  din <= '1';  wait for 20 ns;  din <= '0';  wait for 20 ns;  din <= '1';  wait for 20 ns;  din <= '0';  wait for 20 ns;  din <= '1';  wait for 20 ns;  din <= '0';  wait for 20 ns;  din <= '1'; end process;  END;

Note: Same testbench code can be used for Mealy VHDL code by simply changing the component name to mealy.

TestBench output waveform for Mealy and Moore State Machine

From the above shown waveform, sequence 101 is detected twice from the testbench VHDL code.
